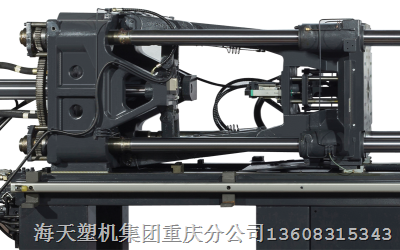

海天注塑机-320吨

机器的主要技术参数                                               A           B             C螺杆直径 mm                       60         65            70注射容量(理论) cm3            792        929         1078注射重量(PS) g                   721        845         981注射速率 g/s                        286        335          389塑化能力 g/s                       51.1        56.7         64.4注射压力 MPa                     213         182           157注射行程 mm                      280螺杆转速 r/min                 0-225料筒加热功率 KW           22.95锁模力 KN                                      3200拉杆内间距(水平×垂直) mm       680 ×680允许模具厚度(**) mm                    680允许模具厚度(**小) mm                    250移模行程 mm                                       640模板开距(**) mm                          1320液压顶出行程 mm                          160液压顶出力 KN                                    62液压顶出杆数量 PC                           13油泵电机功率 KW                                37油箱容积 l                                          690机器尺寸(长×宽×高) m                7.01X1.70X2.25机器重量 t                                          13.2**小模具尺寸(长×宽) mm                    475×475模具平行度 模具厚度 250mm μm 60＞250—400mm μm 80＞400—630mm μm 100＞630—680mm μm 120
